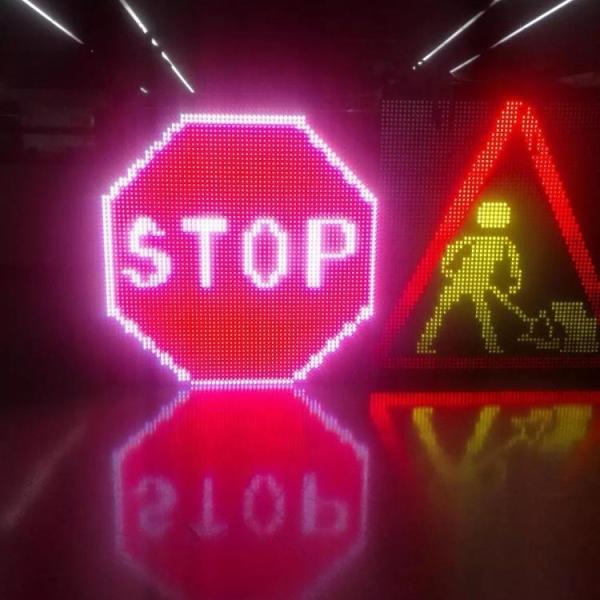

Full Color 16mm Motorway VMS Signs Traffic Safety Message Display
Outdoor Road and highway traffic safety digital message sign
display full color EN12966 16mm
product description:
Provide high brightness, standard brightness and high density 3
kinds of modules, in line with various application requirements of
LED variable intelligence board.
The modular design meets the different needs of various sections of
highway entrances, exits and overpasses.
The brightness is optional from 8500 to 15000nits, and it can
display the red, green and yellow Chinese characters and icons
specified by the national standard.
Strictly follow GBT 23828-2009 standard for material selection,
design, production and testing.
It has been widely used in several domestic expressways, national
first-class highways and urban expressways in large and medium
cities.
Energy-efficient
As a part of our efforts in energy efficiency, Yaham VMS combines
Yaham-engineered optical lens technology and industry-leading
dual-voltage technology, it can tremendously improve energy
efficiency and maximumly lower light pollution.
Remote control
Messages, photos are capable of being edited and displayed remotely
and wirelessly. In addition, VMS can also be remotely switched on
and off.
Smart monitor
Yaham VMS can activate self-diagnosis and report health status,
monitor can identify equipment health status, current message ID,
current operating mode temperature, humidity, etc.
related parameters:
Provide high brightness, standard brightness and high density 3
kinds of modules, in line with various application requirements of
LED variable intelligence board.
The modular design covers the different needs of various road
sections such as 2-lane, 3-lane, and 4-lane.
The brightness is optional from 8500 to 15000nits, and it can
display the red, green and yellow Chinese characters and icons
specified by the national standard.
Strictly follow GBT 23828-2009 standard for material selection,
design, production and testing.
It has been widely used in several high-speed and national
first-class highways in China.
| Item | YHT-VMS-OT12 | YHT-VMS-OT16 | YHT-VMS-OT20 | YHT-VMS-OT25 | YHT-VMS-OT31.25 |
| Pixel pitch | 12mm | 16mm | 20mm | 25mm | 31.25mm |
| LED type | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens | 3 in1 SMD+lens |
| Pixel density | 6944 pixels/m² | 3906 pixels/m² | 2500 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Module dimension | 192×192 mm | 256×128 mm | 320×160 mm | 200×200 mm | 250×250 mm |
| Module resolution | 16×16 | 16×8 | 16×8 | 8×8 | 8×8 |
| Cabinet material | 2mm aluminum Alloy |
| Screen weight | 65kg/m² |
| Cabinet dimension | 960×960 mm | 1024×1024 mm | 960×960 mm | 1000×1000 mm | 1000×1000 mm |
| Brightness | L3,L3*:EN12966 (Red: >3100nits, Green>3720nits,
Blue>1240nits, Amber>7440nits, White:>12400nits) |
| Color coordinates | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 | C2: EN12966 |
| Viewing angle | H 15/-15 Deg. / V 8/-10 Deg.(B6:EN12966) |
| Refresh rate | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz | >90+ Hz |
| Display control | Asynchronous control system available |
| Display capacity | Text, image, graphics animations |
| Lifespan | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs | >100000 hrs |
| Power supply | 12-24V DC/110-230V AC |
| Max. Power consumption | 380W/m² | 250W/m² | 220W/m² | 220W/m² | 220W/m² |
| Avg. Power consumption | 120W/m² | 80W/m² | 70W/m² | 70W/m² | 70W/m² |
| Operation temperature | -25~ +60°C |
| Storage temperature | -40~ +80°C |
| Store humidity | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% | 15%~ 95% |
| Protection level | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) | IP56(P3:12966) |
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic
Market(41.00%),North America(30.00%),Southeast
Asia(6.00%),Oceania(6.00%),Eastern Asia(4.00%),Northern
Europe(3.00%),Southern Europe(3.00%),Eastern Europe(2.00%),Mid
East(2.00%),Western Europe(2.00%),South Asia(00.00%). There are
total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Taxi Roof LED Display,VMS Trailer,Variable Message Sign,Rental LED
Display,Speed Limit Sign
4. why should you buy from us not from other suppliers?
Yaham creating led displat, LED traffic signage and led lighting,
today, Yaham traffic is basedin Yaham's industrial Park, shenzhen,
China, Where the prodcuts are designed and manufactured for the
market all over the world .
